Bytt.Email¶
Bytt.Email is our service for allowing end users to change their own email address and UPN, both in Entra ID and Active Directory.
The service is payed for through Azure Marketplace (Coming soon).
Consenting access¶
Note
The following operations must be done as one of the following roles:
- Global Administrator
- Cloud Application Administrator
- Application Administrator
-
Consent to Fortytwo Universe, our API hub:
https://login.microsoftonline.com/common/adminconsent?client_id=2808f963-7bba-4e66-9eee-82d0b178f408
-
Consent to the Bytt.Email application:
https://login.microsoftonline.com/common/adminconsent?client_id=34ee8edb-d2ff-4ee9-bac3-73b53303e00f
Required graph permissions¶
| Required permission | Why? |
|---|---|
| User.Read.All | The solution needs to get the details of the user account that signs in, such as firstname, lastname, userPrincipalName and proxyAddresses |
| GroupMember.Read.All | Because we need to find email pattern groups as documented below |
Grant users access¶

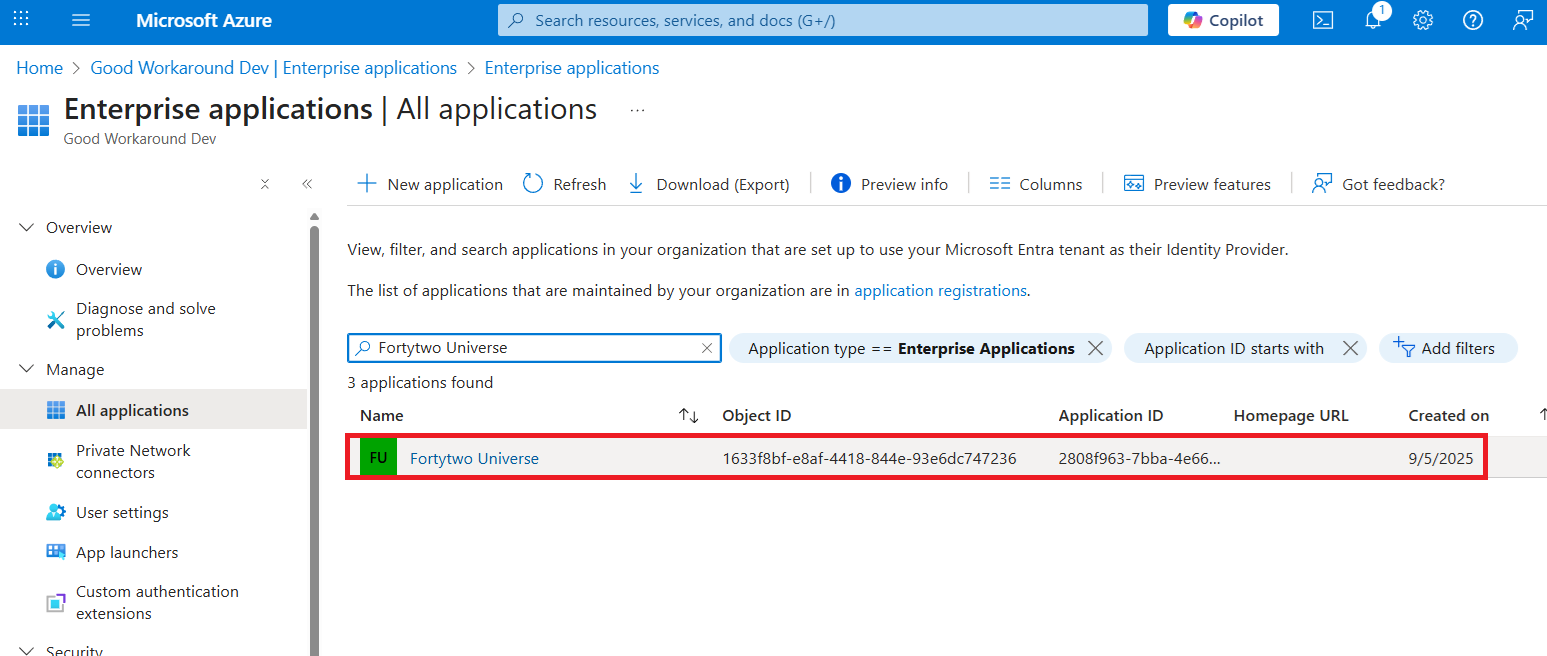

Locate the Fortytwo Universe app under Entra ID and Enterprise Apps:

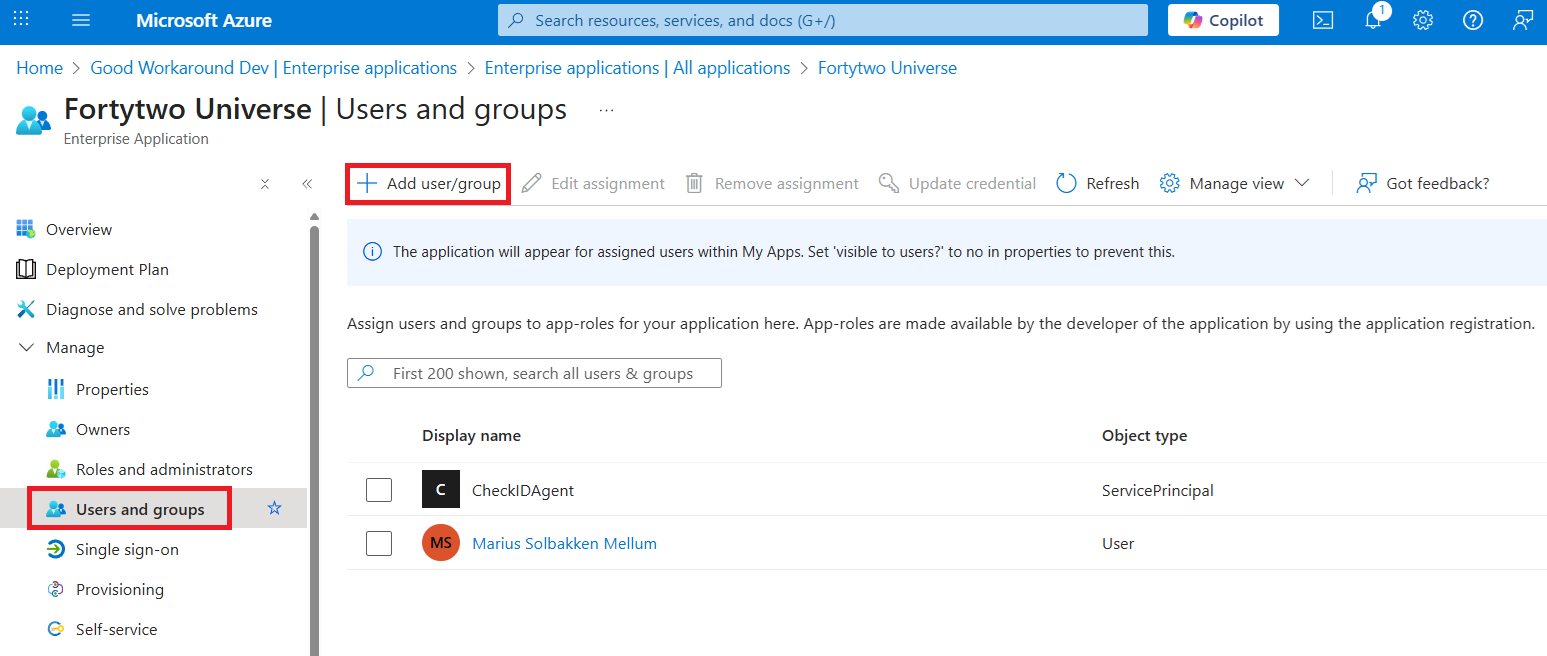

Under Users and groups, click Add user/group.

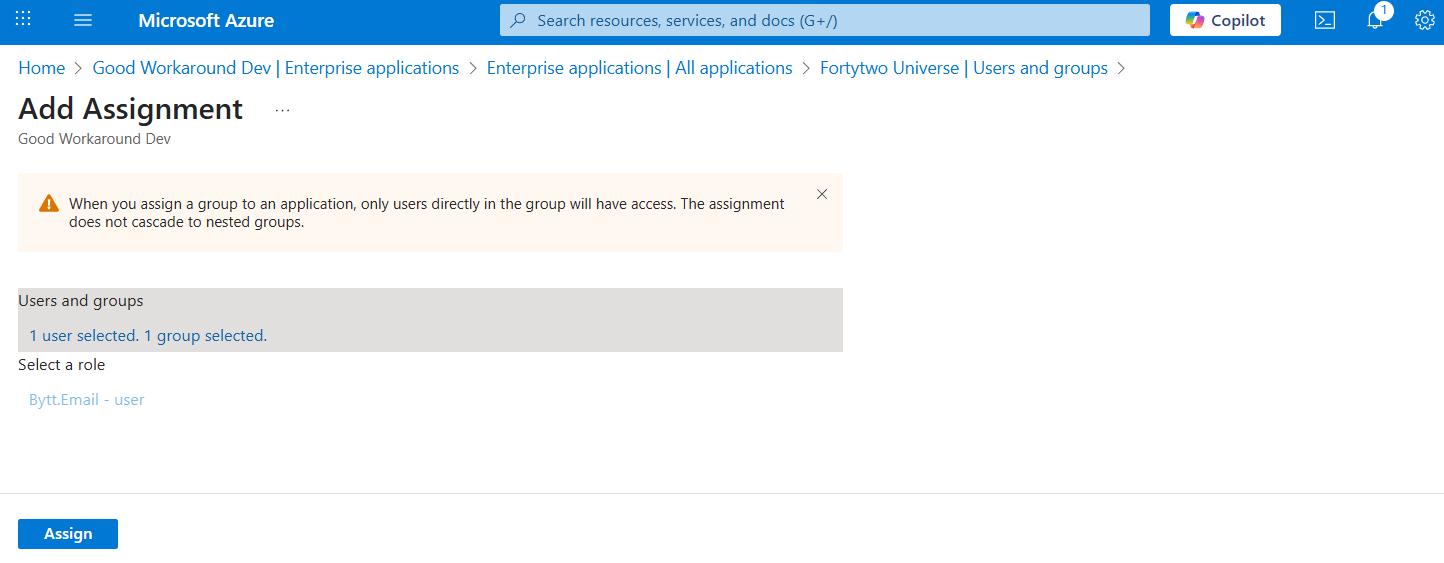

Assign any relevant user or group of users. These will be allowed to use the Bytt.Email service to change their email.

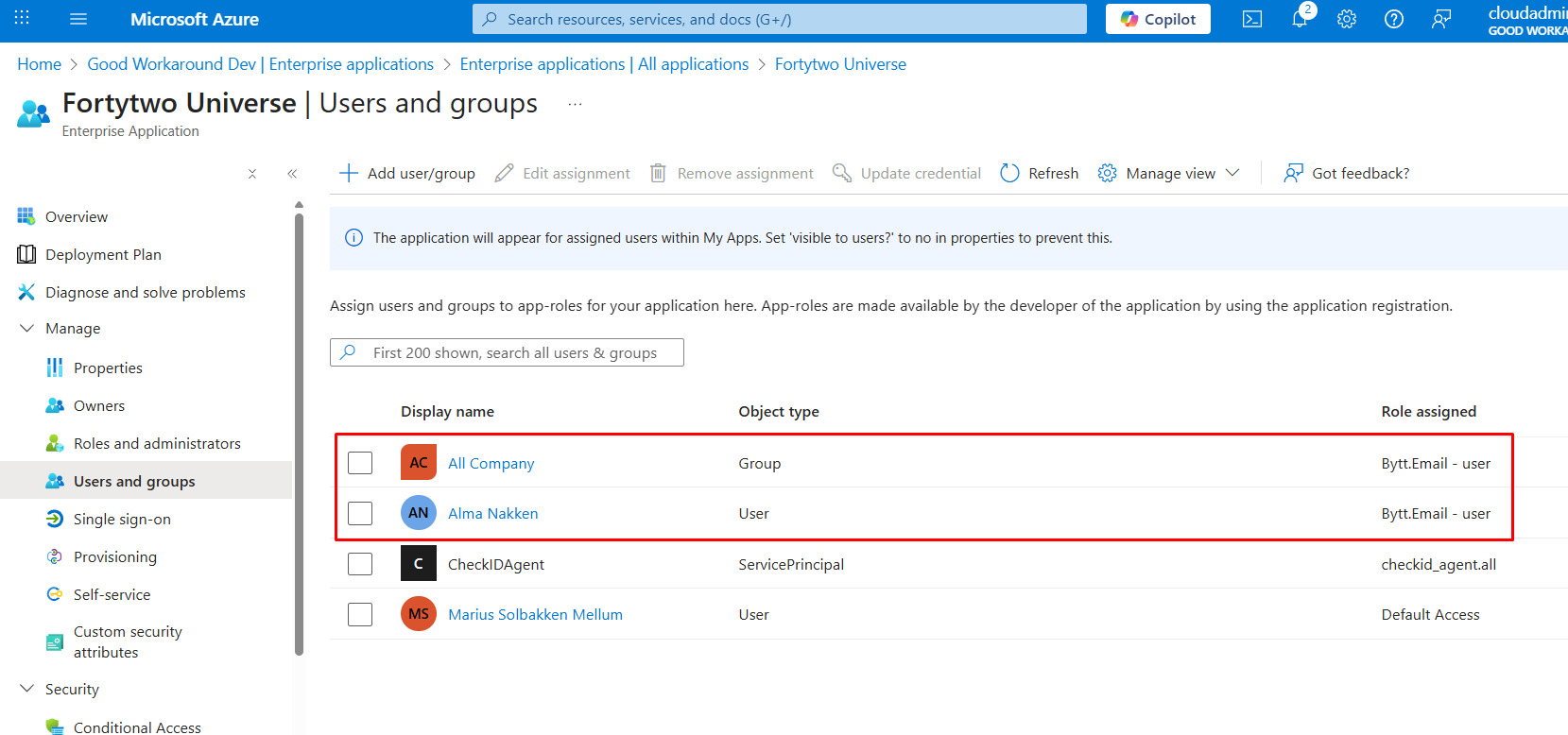

The assignments should now look like this. Notice that if you utilize other Fortytwo services, these role assignments are also managed here.
Configure write permissions / fulfillment¶
Note: It is possible to test the service without granting write permissions, in that case simply skip this section
If you have users in Active Directory synced to Entra ID, you need to configure the AD agent.
If you have cloud users, you need to create an Administrative Unit and assign Bytt.Email permissions.
Configure email patterns¶
Note
The default configuration for Bytt.Email is that the values of the first example is available to your users (if the user is assigned the Bytt.Email - user role, but not assigned a group with patterns), with the domain being the current UPN suffix of the user. This works for many of our customers.
By consenting to Bytt.Email, you now have a new multivalued string attribute named extension_34ee8edbd2ff4ee9bac373b53303e00f_patterns available for groups in your tenant. In order to override the default email patterns available to your users, you can add users as member of group with this attribute set.
This attribute can be set by using Graph Explorer and sending a PATCH request to https://graph.microsoft.com/v1.0/groups/OBJECTID-OF-GROUP
{
"extension_34ee8edbd2ff4ee9bac373b53303e00f_patterns": [
"{firstname1}.{lastname-1}@yourdomain.com",
"{firstname1}.{firstname2}.{lastname-1}@yourdomain.com",
"{firstname1}.{lastname-2}.{lastname-1}@yourdomain.com",
"{firstnamewd1}.{lastnamewd-1}@yourdomain.com",
"{firstnamewd1}.{firstnamewd2}.{lastnamewd-1}@yourdomain.com",
"{firstnamewd1}.{lastnamewd-2}.{lastnamewd-1}@yourdomain.com",
"{firstname1}.{firstname2,1}.{lastname-1}@yourdomain.com",
"{firstname1}.{lastname-1}2@yourdomain.com"
]
}
Create email pattern group using PowerShell¶
connect-mggraph -scopes group.readwrite.all
$domain = "yourdomain.com"
New-MgGroup -DisplayName "Email patterns - $domain" -MailEnabled:$false -SecurityEnabled:$true -MailNickname "$(new-guid)".Substring(0,8) -AdditionalProperties @{
"extension_34ee8edbd2ff4ee9bac373b53303e00f_patterns" = @(
"{firstname1}.{lastname-1}@$domain"
"{firstname1}.{firstname2}.{lastname-1}@$domain"
"{firstname1}.{lastname-2}.{lastname-1}@$domain"
"{firstnamewd1}.{lastnamewd-1}@$domain"
"{firstnamewd1}.{firstnamewd2}.{lastnamewd-1}@$domain"
"{firstnamewd1}.{lastnamewd-2}.{lastnamewd-1}@$domain"
"{firstname1}.{firstname2,1}.{lastname-1}@$domain"
"{firstname1}.{lastname-1}2@$domain"
)
}
Placeholders¶
| Placeholder | Replaced with |
|---|---|
| {firstname1} | First firstname |
| {firstname2} | Second firstname |
| {firstname3} | Third firstname |
| {firstname-1} | Last firstname |
| {firstname-2} | Second last firstname |
| {firstname-3} | Third last firstname |
| {lastname1} | First lastname |
| {lastname2} | Second lastname |
| {lastname3} | Third lastname |
| {lastname-1} | Last lastname |
| {lastname-2} | Second last lastname |
| {lastname-3} | Third last lastname |
| {firstnamewd1} | First firstname, with dashes included |
| {firstnamewd2} | Second firstname, with dashes included |
| {firstnamewd3} | Third firstname, with dashes included |
| {firstnamewd-1} | Last firstname, with dashes included |
| {firstnamewd-2} | Second last firstname, with dashes included |
| {firstnamewd-3} | Third last firstname, with dashes included |
| {lastnamewd1} | First lastname, with dashes included |
| {lastnamewd2} | Second lastname, with dashes included |
| {lastnamewd3} | Third lastname, with dashes included |
| {lastnamewd-1} | Last lastname, with dashes included |
| {lastnamewd-2} | Second last lastname |
| {lastnamewd-3} | Third last lastname |
| {onpremisessamaccountname} | The onpremisessamaccountname attribute of the user |
| {mailnickname} | The mailNickname attribute of the user |
We also allow for extracing the first n characters of the placeholders:
| Placeholder | Replaced with |
|---|---|
| {firstname1,1} | First character of first firstname |
| {lastnamewd-1,3} | First three characters of the last lastname, with dashes included |
Example usage¶
A user that is a member of both of these groups, will get the following options available to them:
- {firstname1}.{lastname-1}@contoso.com
- {firstname1}.{firstname2,1}.{lastname-1}@contoso.com
- {firstname1}.{lastname-1}@nwtraders.com
- {firstname1}.{firstname2,1}.{lastname-1}@nwtraders.com
A user that is a member of only Example Group 1 will get these options:
- {firstname1}.{lastname-1}@contoso.com
- {firstname1}.{firstname2,1}.{lastname-1}@contoso.com
While a user that is member of only Example Group 2 will get these options:
- {firstname1}.{lastname-1}@nwtraders.com
- {firstname1}.{firstname2,1}.{lastname-1}@nwtraders.com
Example Group 1¶
{
"extension_34ee8edbd2ff4ee9bac373b53303e00f_patterns": [
"{firstname1}.{lastname-1}@contoso.com",
"{firstname1}.{firstname2,1}.{lastname-1}@contoso.com"
]
}
