Self Hosted Runners

Step 2 - Configuring the Azure DevOps Agent Pool

Add the Virtual Machine Scale Set as an agent pool in Azure DevOps.

On this page

Now the VMSS is up and running, we are ready to configure the Azure DevOps side of things.

Add the agent pool

Open Organization settings

On the organization level (not while in a project), go to Organization settings

Add a pool

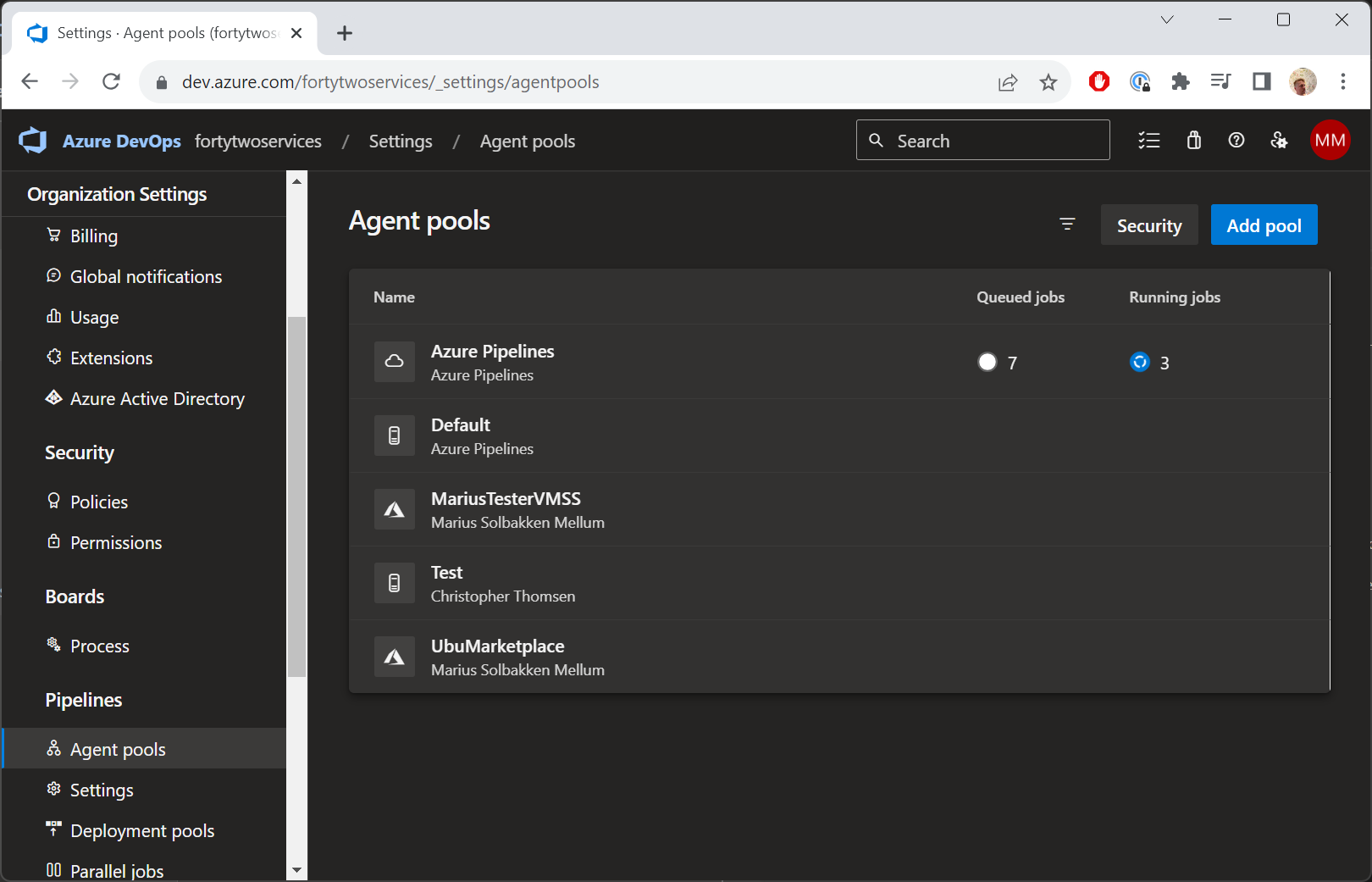

Find Agent pools and click Add pools

Agent pools in Organization settings

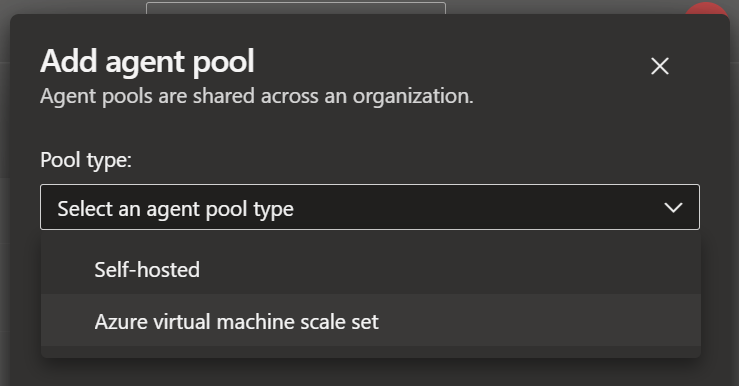

Select Azure virtual machine scale set

Selecting Azure virtual machine scale set as the pool type

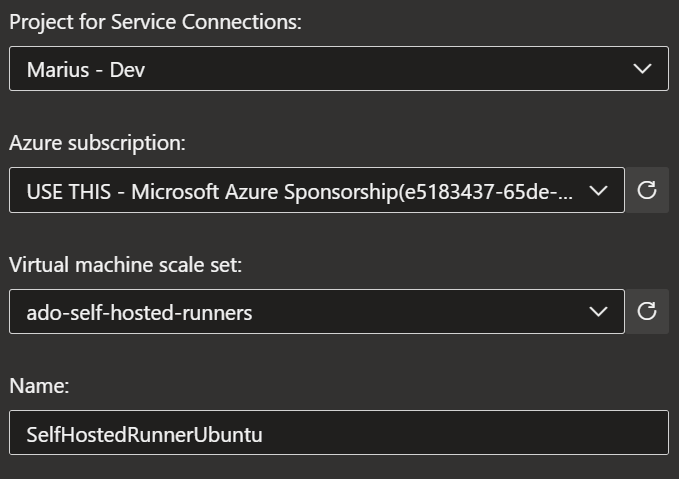

Find your VMSS and name your pool:

Choosing the VMSS and naming the pool

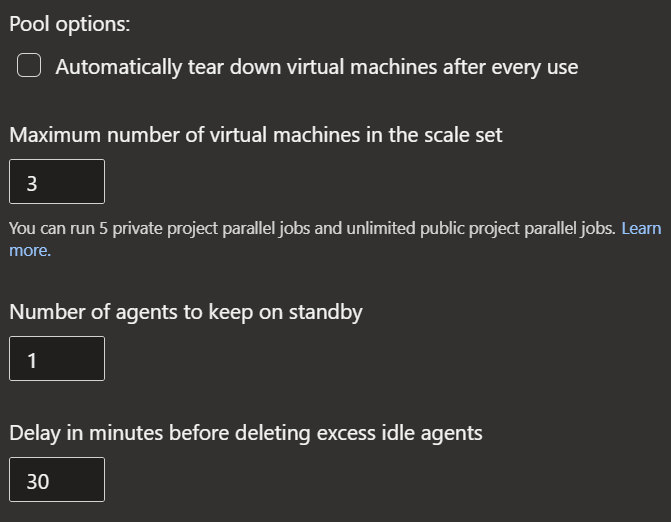

Configure the pool options

Configure your preferred Pool options. We recommend having at least 1 agent on standby, though if cost is an issue, you can set it to 0 (you will have longer wait times for your first run due to provisioning the instance)

The Pool options

Create the pool

Click Create.

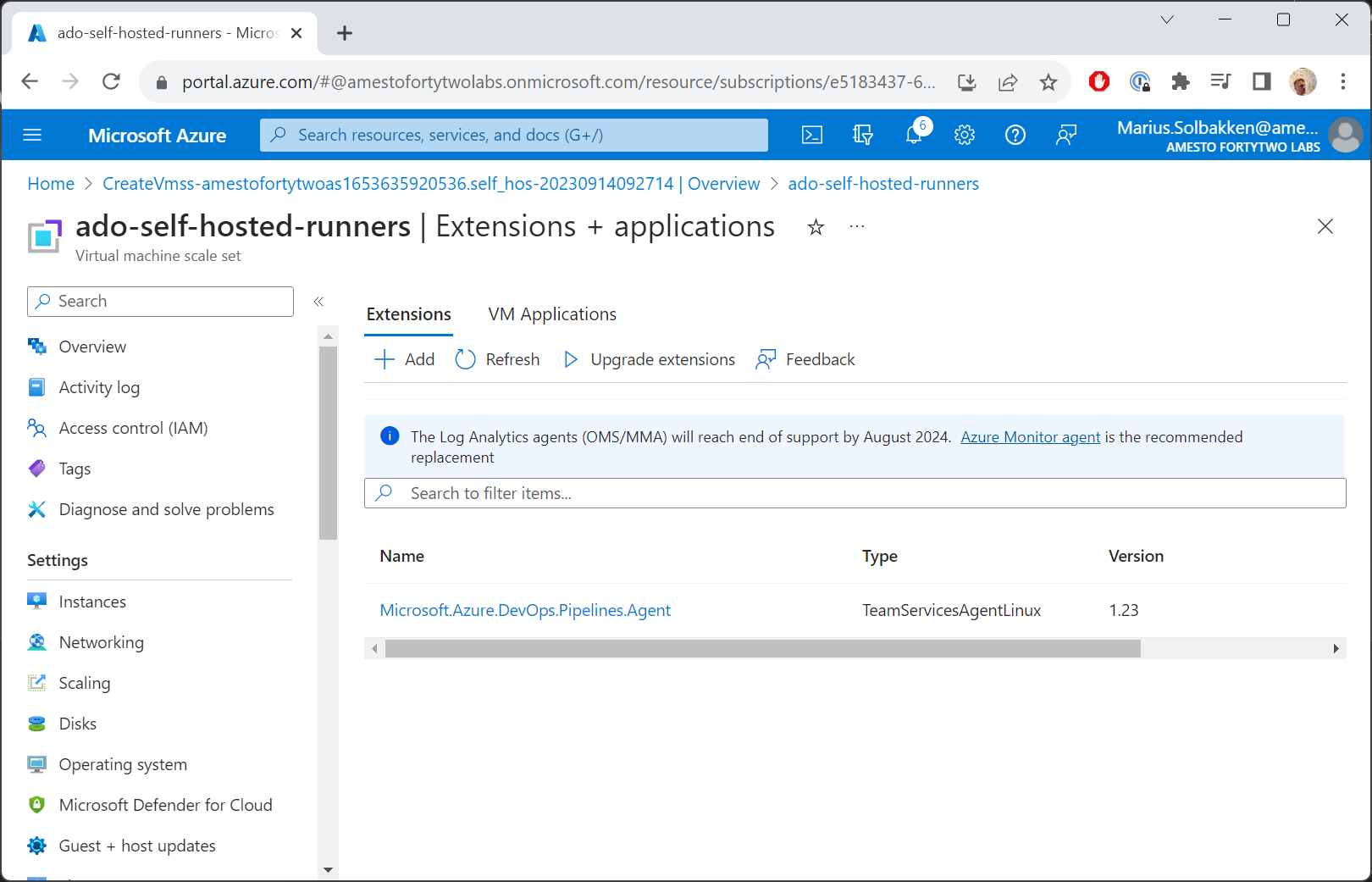

You should now be ready to use the VMSS as runners. After configuring the DevOps side of things, you should see the following extension added to your VMSS:

The extension added to the VMSS

Continue to step 3 - Testing the self hosted runner
