Primary relationship¶

The solution allows users to select their own primary relationship. This means that if you model employments as relationships, you can allow your end users to select between their different employments, choosing which is considered the primary. This is useful for populating fields like job title, company name etc. in AD and Entra ID, which again is visible in Teams, Outlook and other services:

To configure this solution, you need a few steps:

Step 1: Create a collection of all the candidate relationships, meaning which relationships are considered as possible to actually set as primary Step 2: Create a connector with the PrimaryRelationship template Step 3: Add two sync rules to the created connector

Step 1¶

In this step will be create a collection of all the candidate relationships, meaning which relationships are considered as possible to actually set as primary by the end users. Usually we recommend something like this:

relationshipStartDate is on 1 days from today
any of these are true:
    relationshipEndDate is empty
    relationshipEndDate is on today

In the portal, go to Collections in the left menu, and choose Create collection:

alt text

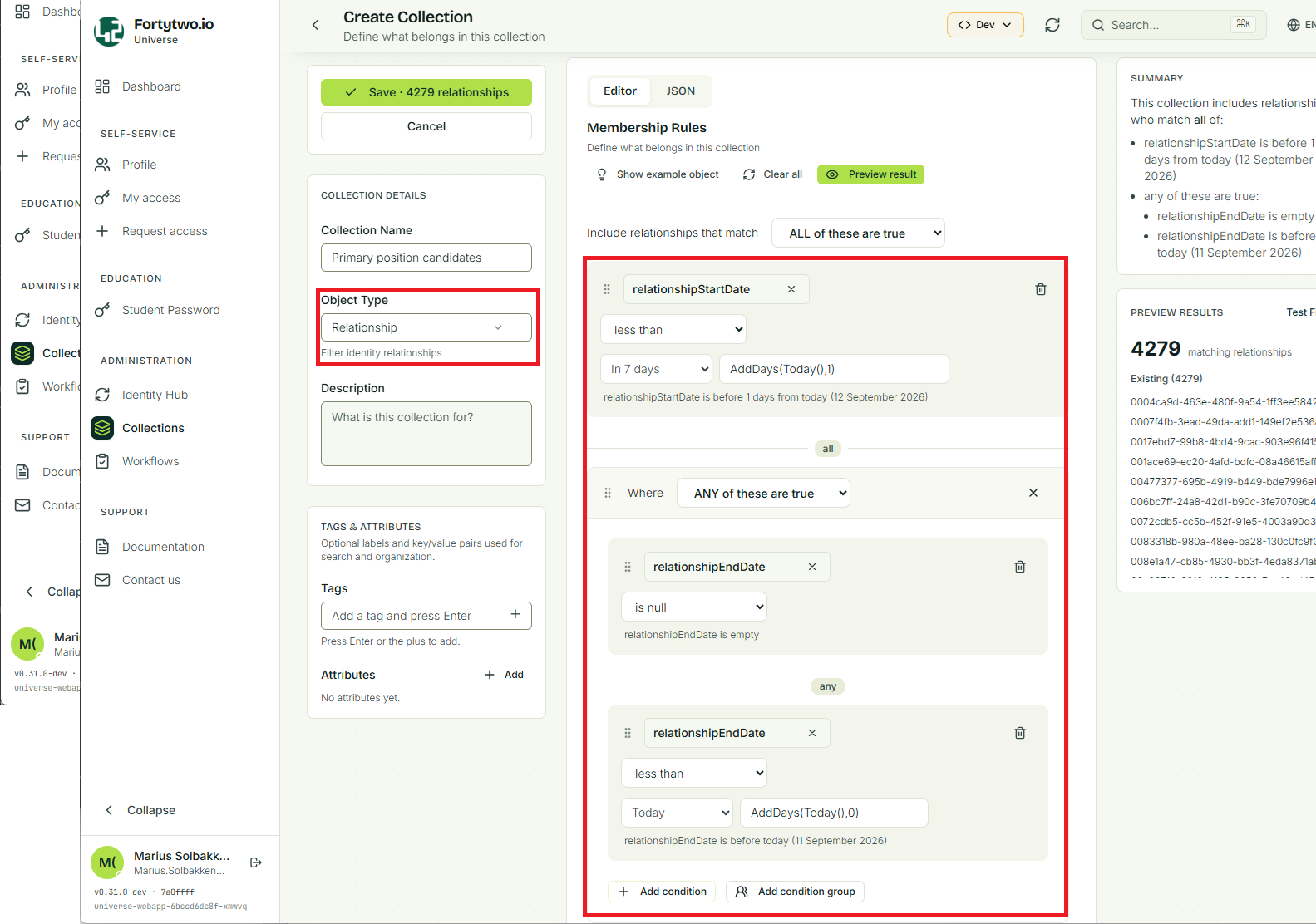

In the Collection details choose to target the Object Type of Relationship, and create a criteria:

alt text

Save the collection.

Step 2¶

In this step, we will create a connector for the primary relationship feature. This is needed because information never is owned by IAM Core itself, instead this is split into a separate connector for storage.

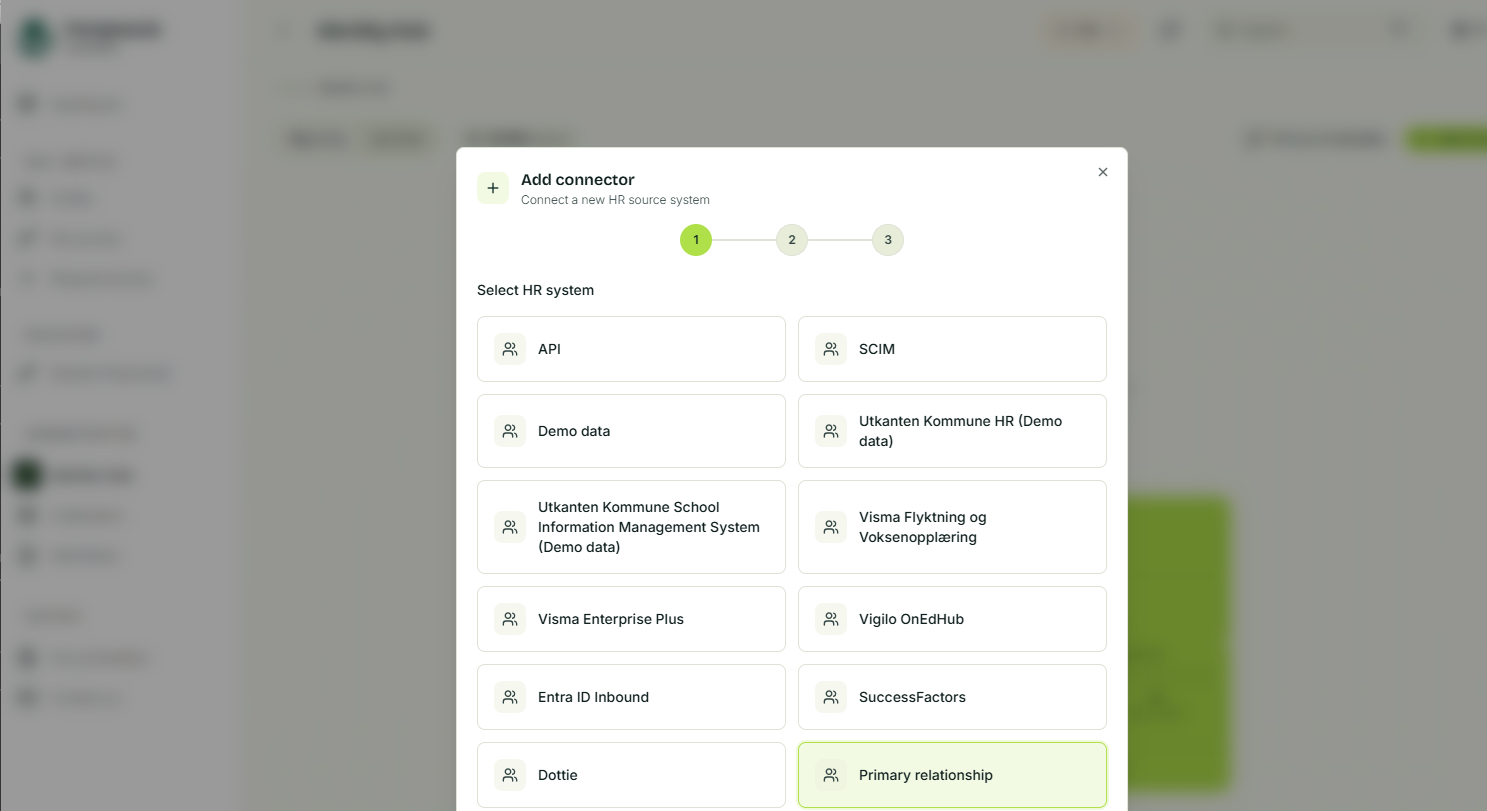

In the portal, go to Identity hub in the left menu, and choose Add connector, and select Primary relationship:

alt text

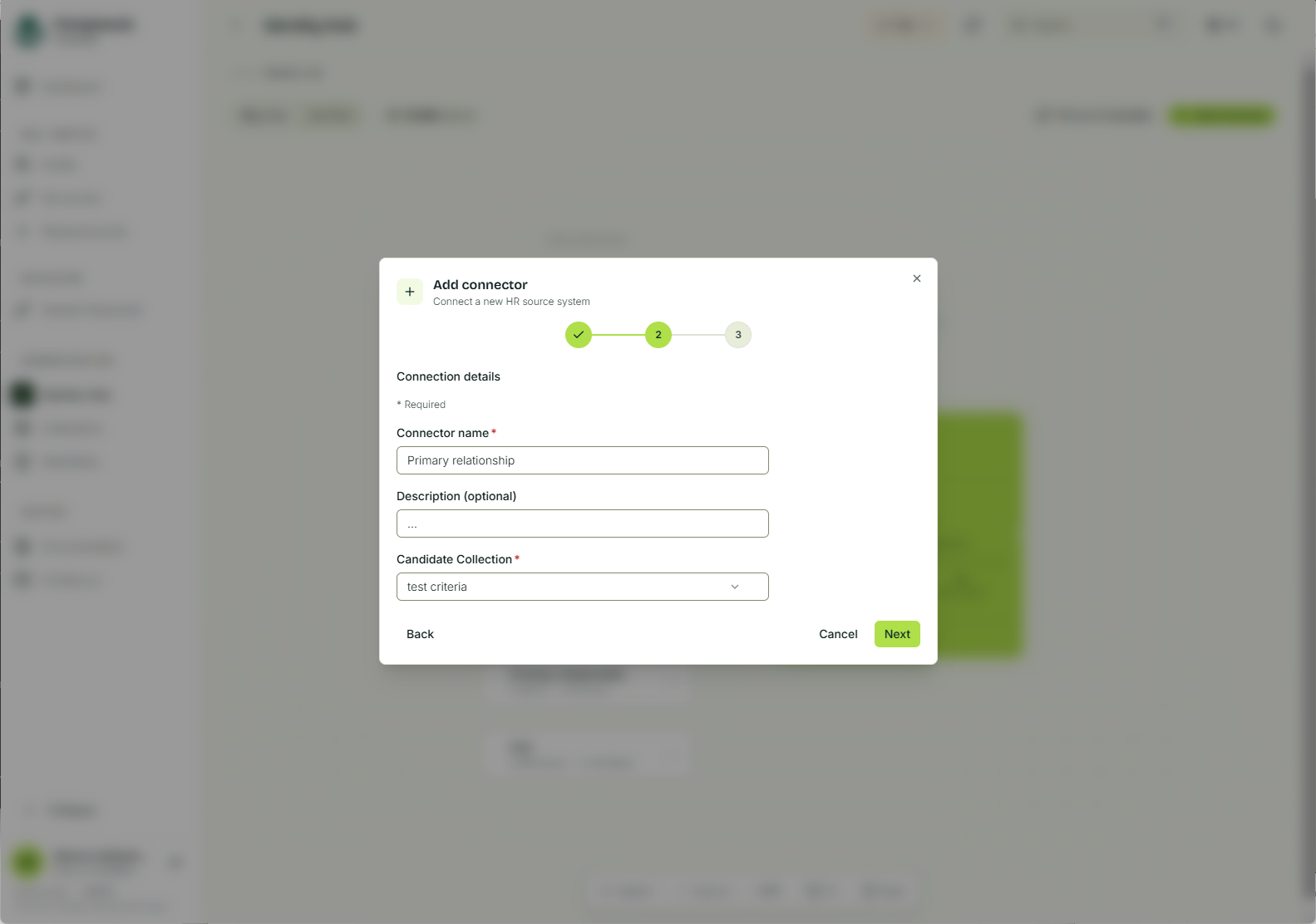

Give the connector a name and choose the Candidate Collection that you just created.

alt text

Step 3¶

In this last step, we will create sync rules for the connector we just created. This is to synchronize from the connector into the primaryRelationship attribute on identities. We need two sync rules.

For now, this is only available using PowerShell or the API:

Connect-IAMCore
$Connector = Get-IAMCoreConnector | ? type -eq "PrimaryRelationship"

New-IAMCoreSyncRule `
    -JoinScope "*" `
    -Name "PrimaryRelationship - Relationship" `
    -ConnectorId $Connector.id `
    -ConnectorObjectType "relationship" `
    -CoreObjectType "relationship" `
    -DisableProvideCoreObjectExistence:$true `
    -ProvisioningEnabled:$false `
    -Priority 54321 `
    -InboundAttributeFlows @(
        @{
            '$type'             = "string"
            targetAttributeName = "id"
            joinPriority        = 1
            value               = @{
                '$type'   = "externalid"
            }
        }
    )

New-IAMCoreSyncRule `
    -JoinScope "*" `
    -Name "PrimaryRelationship - Identity" `
    -ConnectorId $Connector.id `
    -ConnectorObjectType "identity" `
    -CoreObjectType "identity" `
    -DisableProvideCoreObjectExistence:$true `
    -ProvisioningEnabled:$false `
    -Priority 54322 `
    -InboundAttributeFlows @(
        @{
            '$type'             = "string"
            targetAttributeName = "id" # Intentionally not using externalId here, to verify that the internal connector API can handle this case.
            joinPriority        = 1
            value               = @{
                '$type'   = "externalid"
            }
        }

        @{
            '$type'             = "reference"
            targetAttributeName = "primaryRelationship"
            value               = @{
                '$type'             = "asreference"
                objectType          = "relationship"
                referencedAttribute = "id" # Intentionally not using externalId here, to verify that the internal connector API can handle this case.
                input               = @{
                    '$type'   = "attribute"
                    attribute = "relationship"
                }
            }
        }
    )

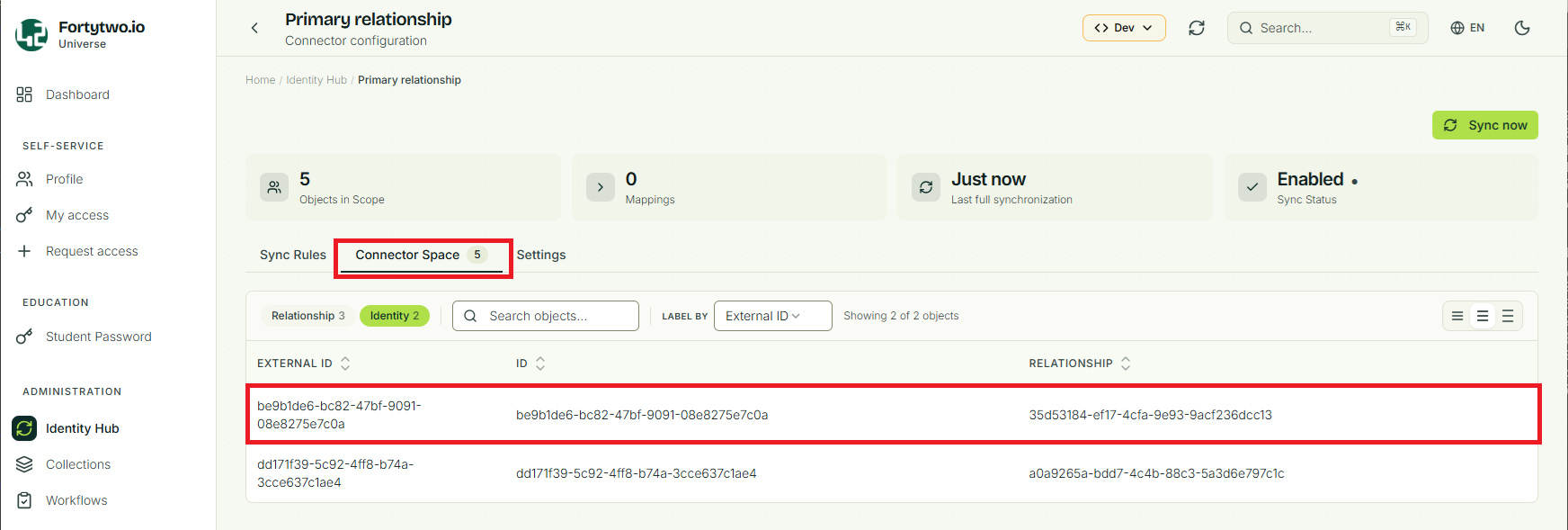

After this is enabled, the users should be able to select their primary relationship, and it should appear in the connector space as guids, where you will see that the external id is the id of the identity and the relationship is the id of the relationship:

alt text
